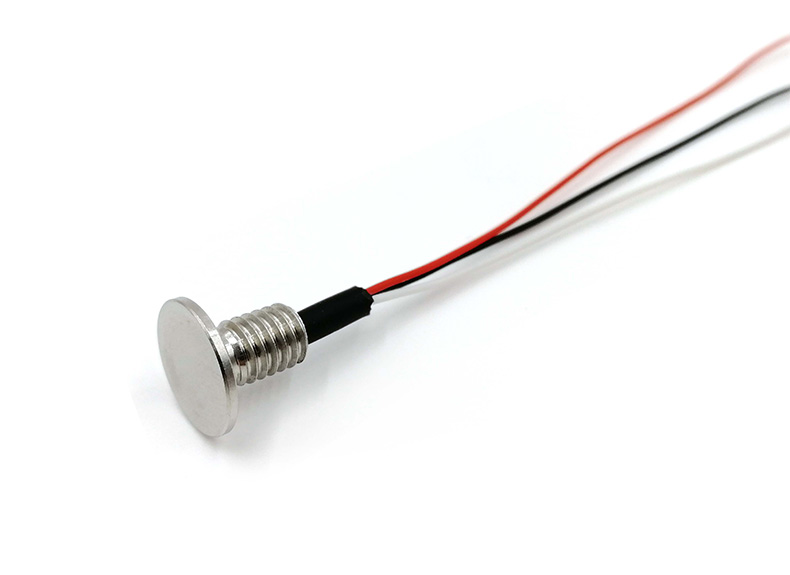

3 Wire PT100/PT1000 Temperature Sensor Screw-In with M6 Threaded

• PT100/PT1000 RTD Element for High Stability & Accuracy
• 3-Wire Configuration for Reliable Temperature Measurement
• M6 Threaded Housing for Secure Screw-In Installation
• Fast Response with Excellent Repeatability
• Durable Stainless Steel Probe Construction
• Industrial, HVAC & Temperature Control Applications

Enquire about this sensor Download PDF ↓

Custom probes, cables, and connectors available.
Explore our customization capabilities →

PRODUCT INFORMATION

In the details.

Ask our engineers

Mechanical Drawing

Technical Data

Sensor element : PT100 RTD (IEC 60751)

Sensor accuracy : IEC 60751 Class A: ±(0.15°C + 0.002 × temperature)

Operating temperature range: -200°C to +500°C

Sensor housing: M6 threaded screw-in housing

Cable: PVC cable

Terminal: None (Stripped & tinned)

Available Options

Cable	Stainless-steel over- braided cable, TPE cable, XLPE cable, PTFE cable, FEP cable, PFA cable，Fiberglass Cable， Mineral Insulated Cable
Cable Length	100 mm – 1000 mm , Custom lengths available upon request
Connector / Termination	2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / RJ50 connectors, M5 / M8 / M12 connectors, GX12 connector, XH / PH / SM / JST connectors, 5557 (Molex KK) connector, Fork spade terminal
Housing	Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Mineral Insulated housing ,Surface Mount housing, Head-mounted housing . Needle housing
