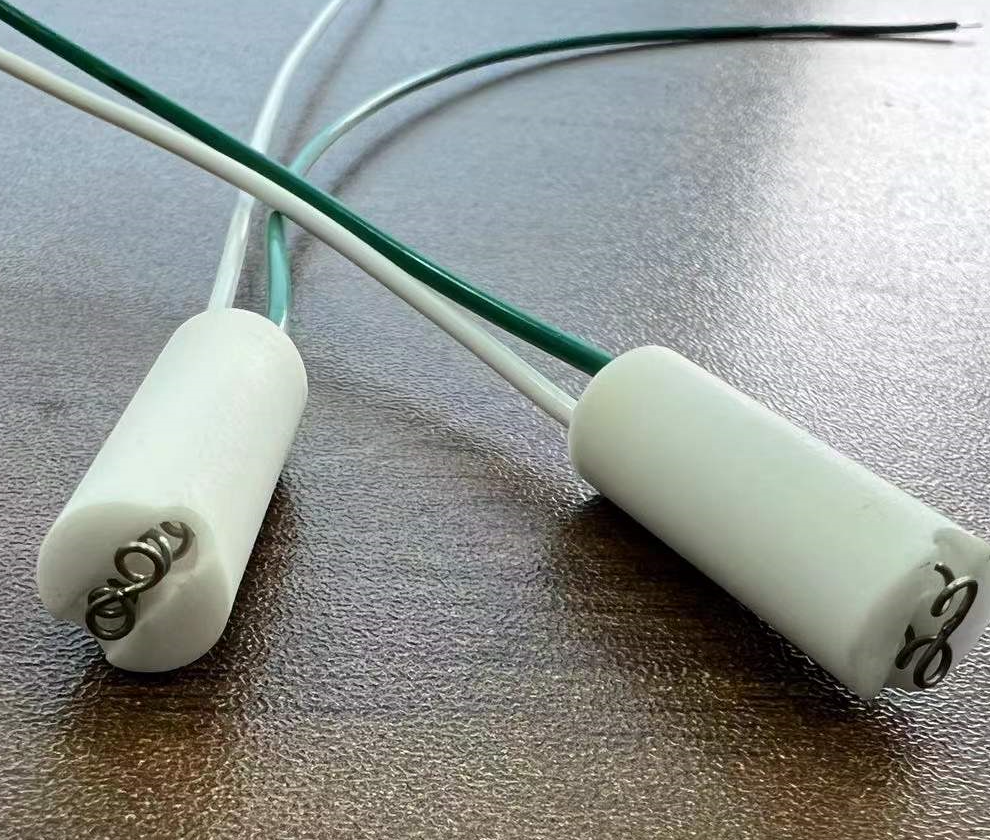

High Temperature K Type Thermocouple with Ceramic Housing 300–1200°C
• K Type Thermocouple for High Temperature Measurement
• Ceramic Housing for Excellent Heat Resistance
• 300–1200°C Temperature Range Capability
• Fast Response with Stable Temperature Detection
• Custom Probe Dimensions & Cable Options
• Furnace, Kiln & Industrial Heating Applications
Explore our customization capabilities →
Mechanical Drawing
Technical Data
Sensor element : Type K Thermocouple
Sensor accuracy : IEC 60584-1 Class 2 (±2.5°C or ±0.75% of reading )
Operating temperature range: -40°C ～ +1200°C
Sensor housing: Ceramic Housing
Cable: PTFE cable
Terminal: None(Stripped & Soldered )
Available Options
|
Cable |
Stainless-steel over- braided cable, TPE cable, XLPE cable, PTFE cable, FEP cable, PFA cable，Fiberglass Cable， Mineral Insulated Cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector / Termination |
M8 / M12 connectors, GX12 connector, 5557 (Molex KK) connector, Fork spade terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Mineral Insulated housing ,Surface Mount housing, Head-mounted housing . Needle housing |
|
Sensor Elements |
Type T thermocouple, Type E thermocouple, Type N thermocouple, Type S Thermocouple Type R Thermocouple Type B Thermocouple |
