Custom SHT31 Temp & Humidity Sensor I2C to RS485, SS316, GX12
• SHT31 Sensor for Agriculture Climate Monitoring
• I2C to RS485 for Long Distance Communication
• SS316 Housing for Outdoor Protection
• GX12 Connector for Reliable Integration
• Stable Temperature & Humidity Detection
• Greenhouse, Farming & Smart Agriculture Systems
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →

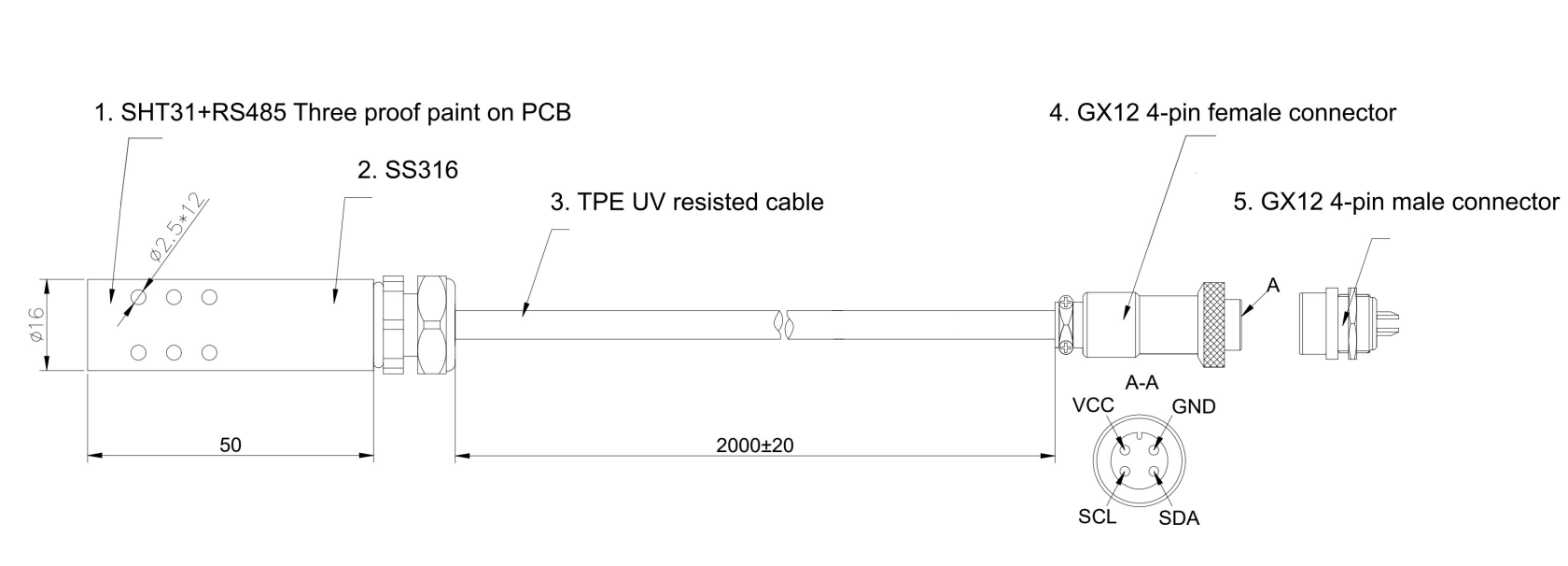

Mechanical Drawing
Technical Data
Sensor Element：Sensirion SHT31 humidity and temperature sensor
Humidity Accuracy: ±2% RH
Temperature Accuracy: ±0.3°C
Operating Temperature Range: -40°C ~ 125°C
I²C Address: 0x44 / 0x45
Response Time (τ63%): 8s
Typical Supply Current: 0.2 mA
Sensor housing: PE ventilated plastic housing
Cable: PE cable 26AWG*4C
Terminal: GX12 connector
Available Options
|
Cable |
PVC cable，TPE cable，TPU cable，Silicone cable，FEP cable，PTFE cable，Signal Integrity cable |
|
Cable Length |
1 m (default), customizable 0.1–10 m |
|
Connector/ Termination |
2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / connectors, M5 / M8 / M12 connectors, GX12 / G16 connector，XH / PH / SM / JST connectors, 5557 (Molex KK) connector |
|
Housing |
Ventilated plastic housing，Gore / PTFE membrane housing，Sintered metal housing，Probe housing |
|
Sensor Elements |
Sensirion SHT20 / SHT30 / SHT31 / SHT35 / SHT40 / SHT41 / SHT43 / SHT45 / SHTC3 Humidity & Temperature Sensor , DHT22 Humidity & Temperature Sensor |
