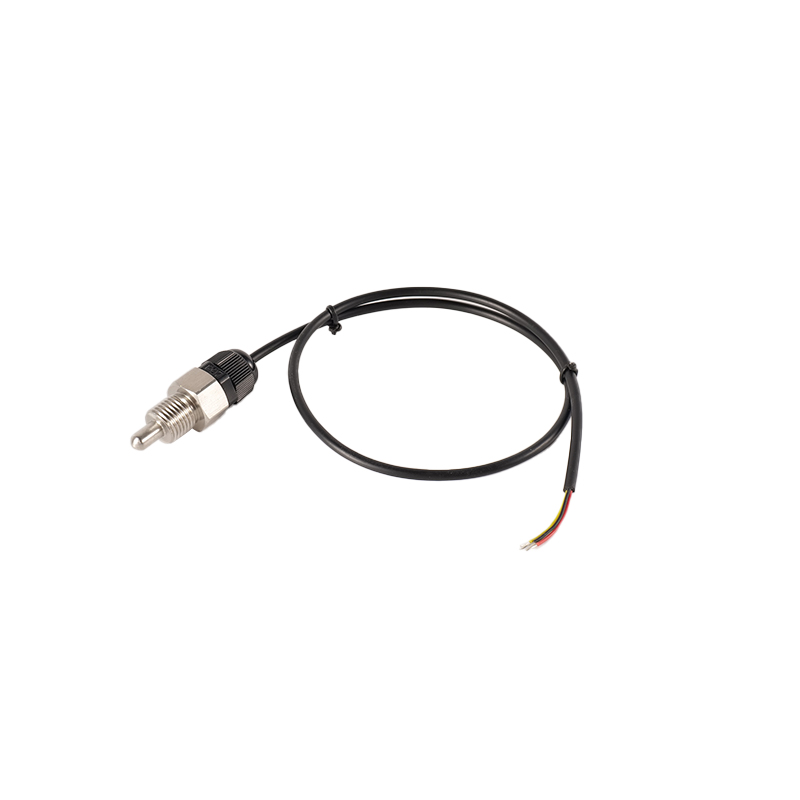

Custom Threaded DS18B20 Temperature Sensor Probe for Industrial Use
• Threaded Housing for Secure Equipment Installation
• 1-Wire Digital Output for Easy Integration
• Waterproof Probe for Reliable Operation
• Stable Temperature Data with Fast Response
• Custom Thread Size, Cable & Connector Options
• Industrial, HVAC & Process Monitoring Systems
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →

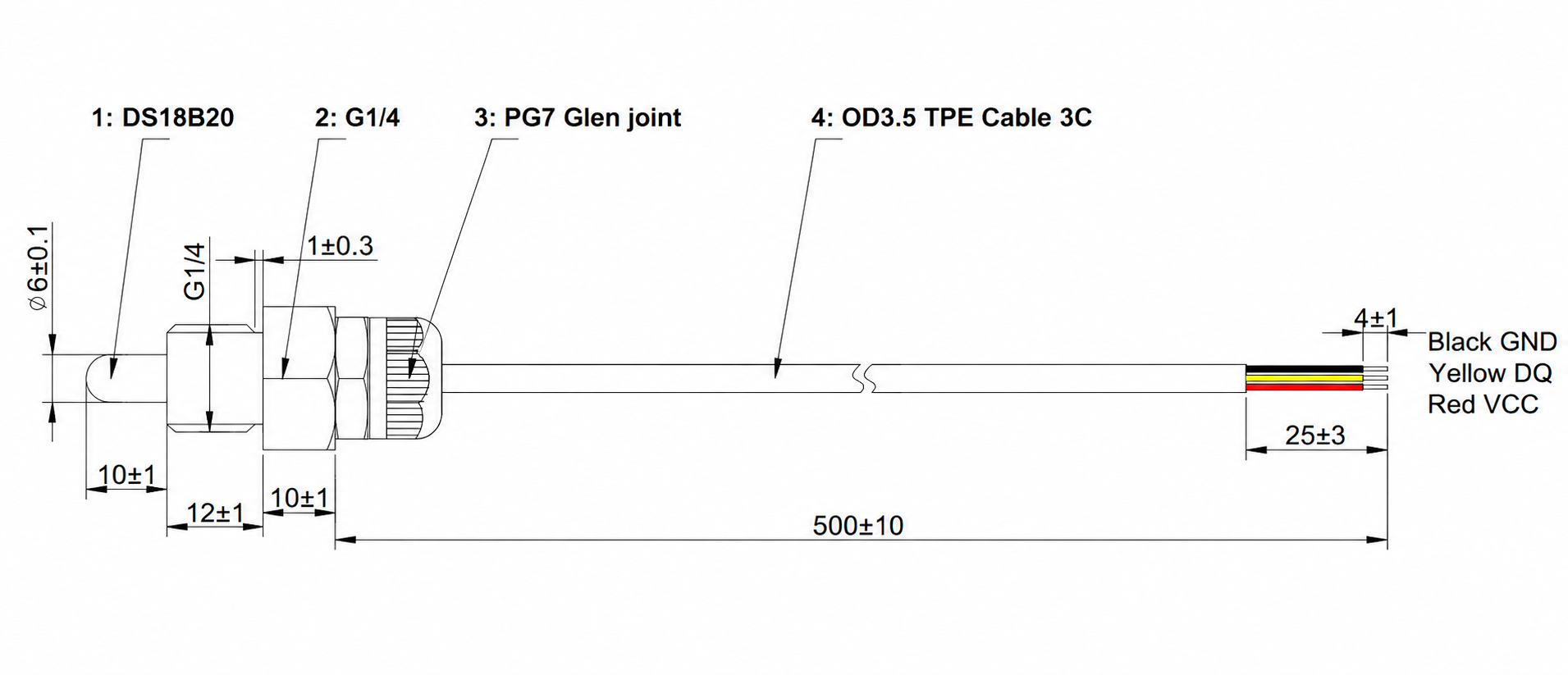

Mechanical Drawing
Technical Data
Sensor element : DS18B20 Digital Temperature Sensor (Maxim Integrated)
Sensor accuracy：±0.5°C (typical) from -10°C to +85°C
Operating temperature range: -55°C to +125°C
Sensor housing: Threaded screw-in housing
Cable: TPE cable
Terminal: None (Stripped & tinned)
Available Options
|
Cable |
PVC cable， TPE cable， Silicone cable ，Shielded cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector / Termination |
2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / RJ50 connectors, M5 / M8 / M12 connectors, GX12 connector, XH / PH / SM / JST connectors, 5557 (Molex KK) connector, Fork spade terminal，Ring terminal，Pin terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Surface Mount housing, Needle housing |
|
Sensor Elements |
DS18B20 (Maxim Integrated) |
