MANFRI · SENSOR SOLUTIONS

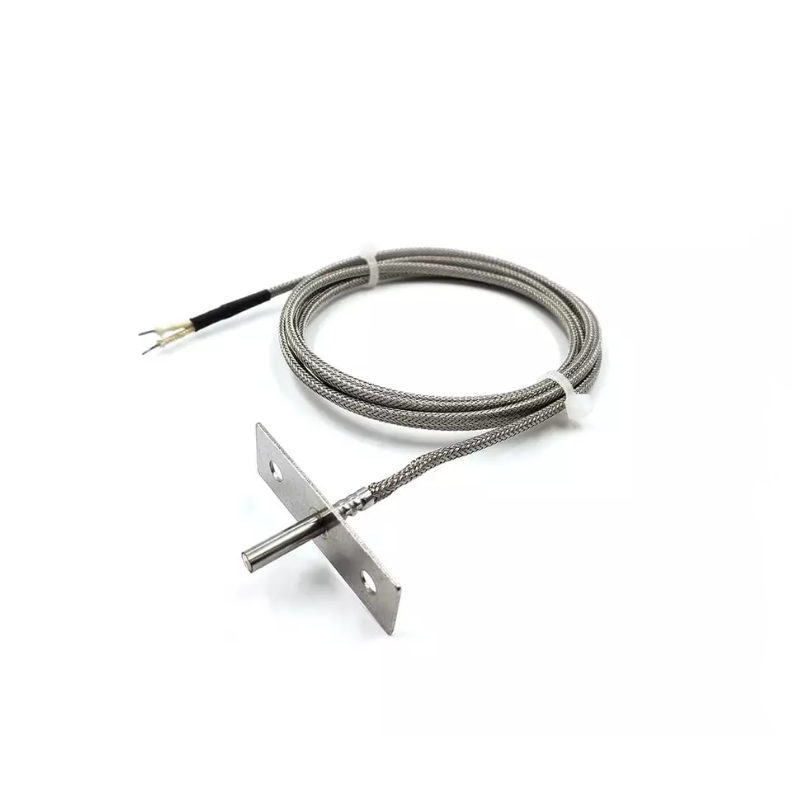

KTY81 PTC Temperature Sensor with Flanged Housing
• Flanged Housing for Secure Equipment Installation
• KTY81 PTC Element for Stable Temperature Sensing
• Fast Response with Reliable Thermal Performance
• Compact Design for Easy System Integration
• Custom Cable, Housing & Connector Options
• HVAC, Appliances & Industrial Equipment Monitoring
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →
Mechanical Drawing
Technical Data
Sensor element: Silicon PTC Temperature Sensor (KTY81-110)
Sensor accuracy: ±1°C to ±3°C (typ., depending on calibration)
Operating temperature range: -55°C to +150°C
Sensor housing: Closed-end stainless-steel tube housing (SS304 / SS316)
Cable: Stainless-steel braided cable
Terminal：None (Stripped & tinned)
Available Options
|
Cable |
PVC cable， TPE cable， Silicone cable ，Shielded cable, Stainless-steel braided cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector / Termination |
2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / RJ50 connectors, M5 / M8 / M12 connectors, GX12 connector, XH / PH / SM / JST connectors, 5557 (Molex KK) connector, Fork spade terminal，Ring terminal，Pin terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Surface Mount housing, Needle housing |
|
Sensor Elements |
KTY81-110， KTY84-130， Ceramic PTC Thermistor MZ6-14，MZ6-16，MZ6-18，MZ6-20，MZ6-24 |
