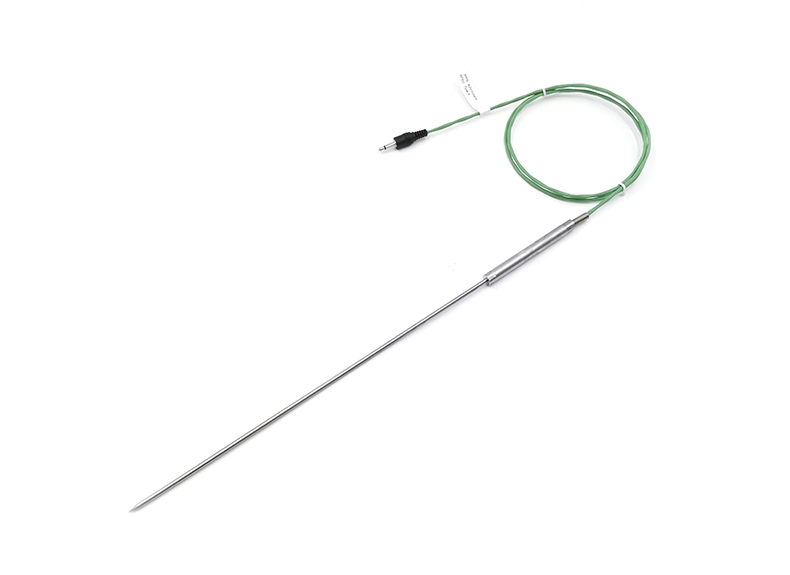

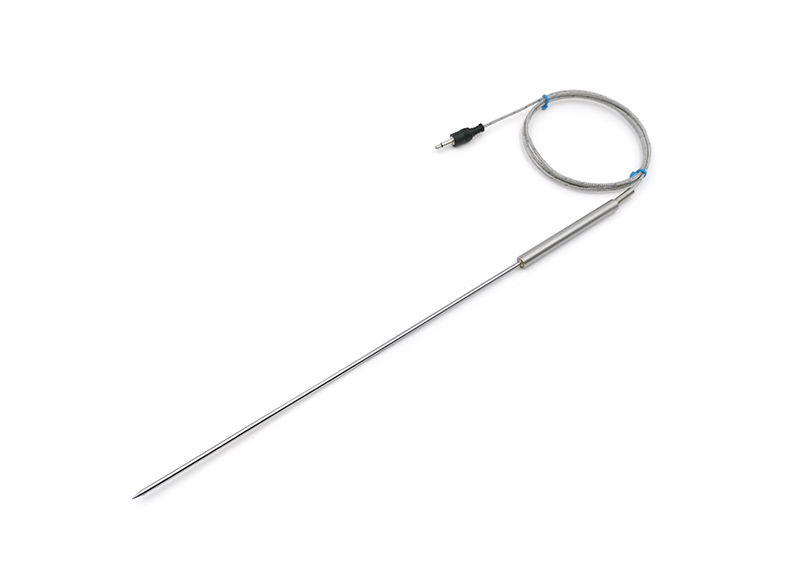

Handheld Mineral Insulated Thermocouple Temperature Probe
• Mineral Insulated Thermocouple for Fast Response
• Handheld Probe Design for Easy Temperature Testing
• High Temperature Resistance with Stable Performance
• Flexible MI Cable for Durable Industrial Use
• Custom Probe Lengths & Connector Options
• Industrial Testing, Ovens & Heating Applications
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →
Mechanical Drawing
Technical Data
Sensor element : Mineral Insulated Type K Thermocouple
Sensor accuracy : ±1.5℃ or ±0.4%FS
Operating temperature range: -200℃～1300℃
Sensor housing: Stainless steel mineral insulated housing
Cable: PTFE cable
Terminal: 3.5mm audio jack
Available Options
|
Cable |
Stainless-steel over- braided cable, TPE cable, XLPE cable, PTFE cable, FEP cable, PFA cable，Fiberglass Cable， Mineral Insulated Cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector / Termination |
M8 / M12 connectors, GX12 connector, 5557 (Molex KK) connector, Fork spade terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Mineral Insulated housing ,Surface Mount housing, Head-mounted housing . Needle housing |
|
Sensor Elements |
Type T thermocouple, Type E thermocouple, Type N thermocouple, Type S Thermocouple Type R Thermocouple Type B Thermocouple |
