K Type Temperature Sensor Assembly-Mounted Probe with Terminal Head & Threaded Mount

• K Type Thermocouple for Industrial Temperature Control
• Terminal Head for Reliable Signal Connection
• Threaded Mount for Secure Installation
• Fast Response with Stable Temperature Detection
• Custom Probe Sizes & Cable Options Available
• Industrial Automation & Process Monitoring

Enquire about this sensor Download PDF ↓

Custom probes, cables, and connectors available.
Explore our customization capabilities →

PRODUCT INFORMATION

In the details.

Ask our engineers

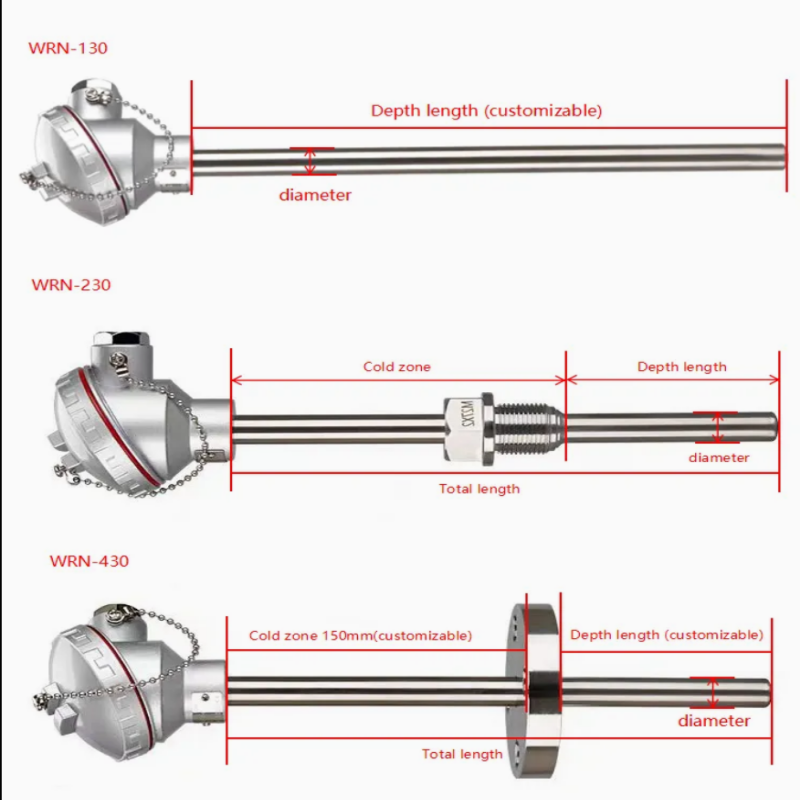

Mechanical Drawing

Technical Data

Sensor element : Type K Thermocouple

Sensor accuracy : IEC 60584-1 Class 1 (±1.5°C or ±0.4% of reading )

Operating temperature range: -40°C ～ +1000°C

Sensor housing: mineral-insulated (MgO) stainless steel housing

Cable : None

Terminal: Assembly-Mounted Terminal head

Available Options

Cable	/
Cable Length	/
Connector/ Termination	/
Housing	Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Mineral Insulated housing ,Surface Mount housing, Head-mounted housing . Needle housing
Sensor Elements	Type T thermocouple, Type E thermocouple, Type N thermocouple, Type S Thermocouple Type R Thermocouple Type B Thermocouple
