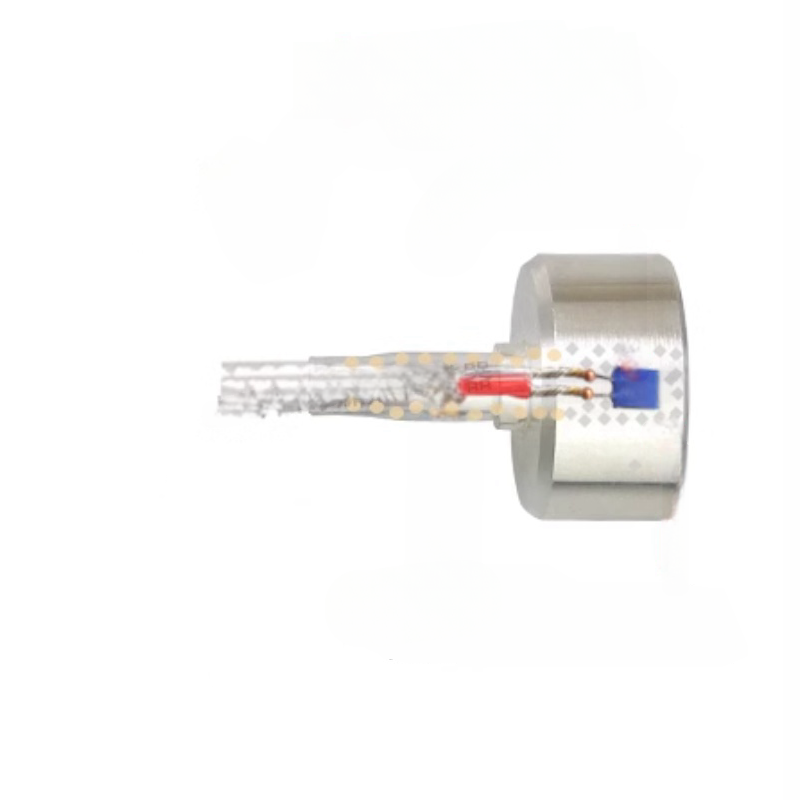

Magnetic PT1000 RTD Temperature Sensor for Industrial Control
• PT1000 RTD Element for Temperature Measurement
• Magnetic Mount Design for Easy Installation
• Stable Resistance Output with High Repeatability
• Fast Response for Industrial Temperature Control
• Custom Cable & Connector Options Available
• Industrial Equipment & Process Monitoring Applications
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →

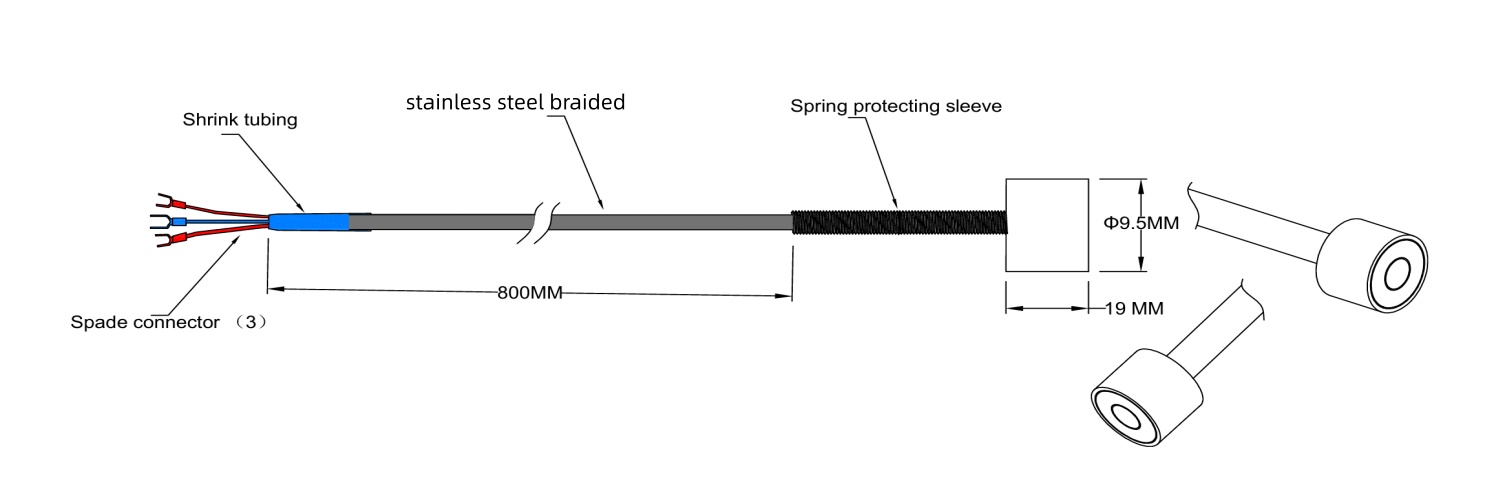

Mechanical Drawing
Technical Data
Sensor element : PT1000 RTD (IEC 60751)
Sensor accuracy : IEC 60751 1/3 Class B (AA): ±(0.10°C + 0.00167 × temperature)
Operating temperature range: -200°C to +500°C
Sensor housing: Stainless Steel Surface Mount housing
Cable: Teflon with stainless steel braided cable
Terminal: Fork spade terminal
Available Options
|
Cable |
Stainless-steel over- braided cable, TPE cable, XLPE cable, PTFE cable, FEP cable, PFA cable，Fiberglass Cable， Mineral Insulated Cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector / Termination |
2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / RJ50 connectors, M5 / M8 / M12 connectors, GX12 connector, XH / PH / SM / JST connectors, 5557 (Molex KK) connector, Fork spade terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Mineral Insulated housing ,Surface Mount housing, Head-mounted housing . Needle housing |
