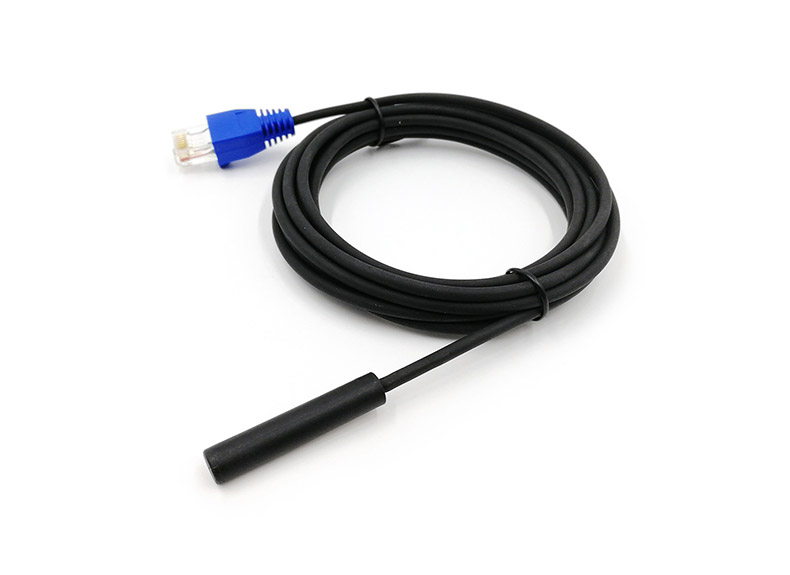

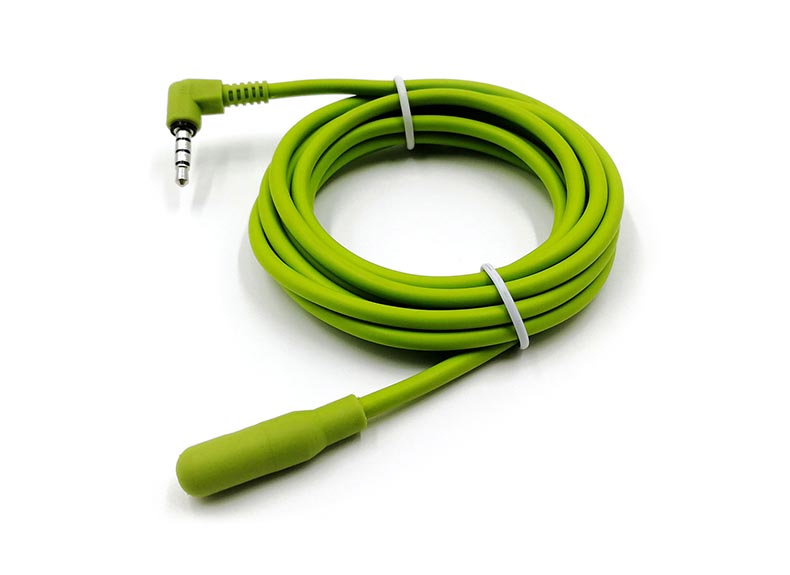

OEM DS18B20 Temperature Probe with ABS Overmolding

• DS18B20 Digital Sensor for HVAC Monitoring
• ABS Overmolding for Enhanced Sensor Protection
• Digital Output for Stable Temperature Data
• Compact Probe Design for Easy Installation
• Custom Cable & Connector Options Available
• HVAC, Cooling & Temperature Control Systems

Enquire about this sensor Download PDF ↓

Custom probes, cables, and connectors available.
Explore our customization capabilities →

PRODUCT INFORMATION

In the details.

Ask our engineers

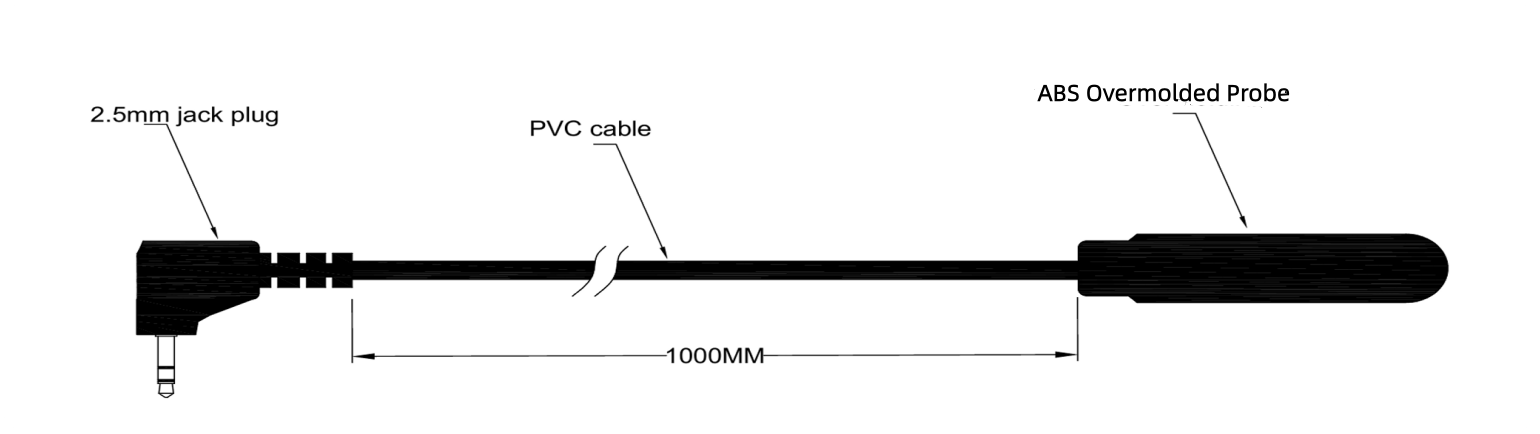

Mechanical Drawing

OEM DS18B20 Temperature Probe with ABS Overmolding

Technical Data

Sensor element : DS18B20 Digital Temperature Sensor (Maxim Integrated)

Sensor accuracy：±0.5°C (typical) from -10°C to +85°C

Operating temperature range: -55°C to +125°C

Sensor housing: ABS 7×8×30mm housing

Cable: Silicone cable

Terminal: 2.5mm audio jack

Available Options

Cable	PVC cable， TPE cable， Silicone cable ，Shielded cable
Cable Length	100 mm – 1000 mm , Custom lengths available upon request
Connector / Termination	2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / RJ50 connectors, M5 / M8 / M12 connectors, GX12 connector, XH / PH / SM / JST connectors, 5557 (Molex KK) connector, Fork spade terminal，Ring terminal，Pin terminal
Housing	Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Surface Mount housing, Needle housing
Sensor Elements	DS18B20 (Maxim Integrated)
