MANFRI · SENSOR SOLUTIONS
SHT30 Temperature and Humidity Sensor with OEM/ODM Support
• SHT30 Sensor for Reliable Temperature & Humidity Measurement
• Digital Output with I2C Communication Interface
• Fast Response with Stable Data Performance
• Low Power Consumption for Smart Applications
• Custom Probe, Housing & Connector Options
• HVAC, IoT & Environmental Monitoring Systems
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →
The SHT30 temperature and humidity sensor with OEM/ODM support is a reliable digital sensing solution designed for HVAC, IoT and environmental monitoring applications. Featuring a high-performance Sensirion SHT30 sensing element, it provides accurate temperature and humidity measurement, fast response and stable digital signal output. It supports customized probe structures, cable lengths, housing designs and connector options to meet different application requirements. The sensor is widely used in HVAC systems, air quality monitoring, smart devices, data loggers and industrial environmental control equipment. OEM/ODM customization, technical support and RoHS/REACH documents are available upon request.

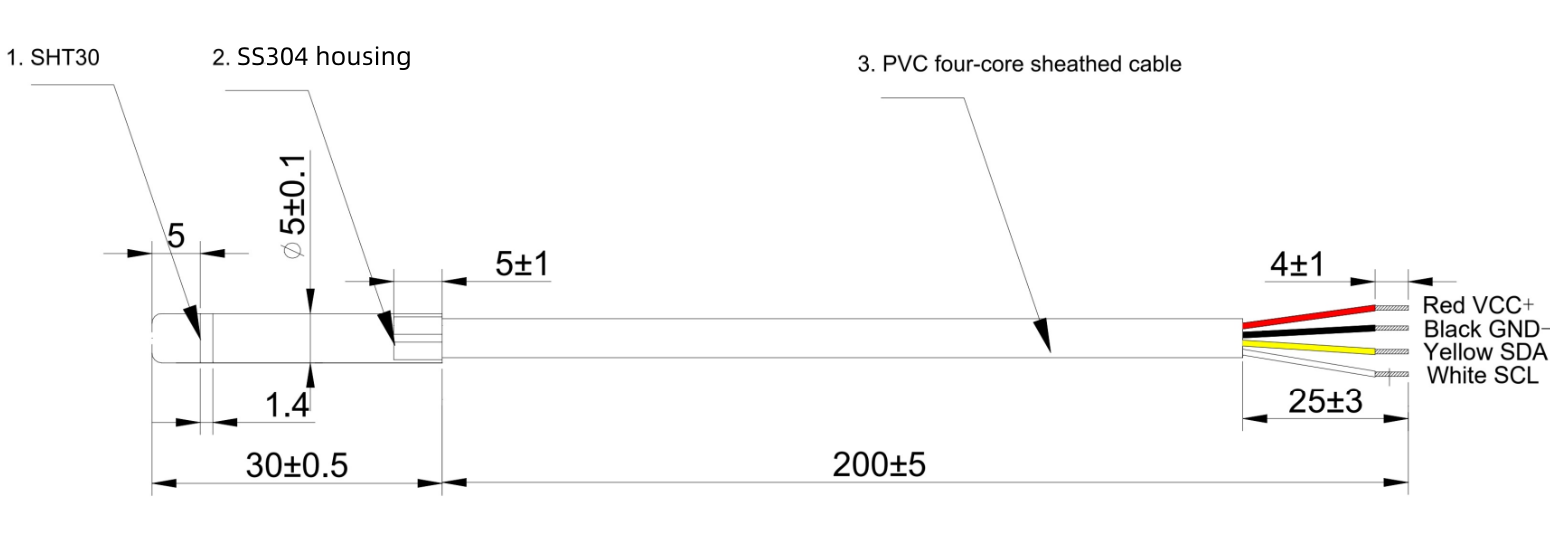

Mechanical Drawing
Technical Data
Sensor Element：Sensirion SHT30 humidity and temperature sensor
Humidity Accuracy: ±3 % RH
Temperature Accuracy: ±0.3°C
Operating Temperature Range: -40°C ~ 125°C
I²C Address: 0x44 / 0x45
Response Time (τ63%): 15s
Typical Supply Current: 0.2 mA
Sensor housing: Stainless steel housing
Cable: TPE cable
Terminal: 3.5 mm audio jack
Available Options
|
Cable |
PVC cable，TPE cable，TPU cable，Silicone cable，FEP cable，PTFE cable，Signal Integrity cable |
|
Cable Length |
1 m (default), customizable 0.1–10 m |
|
Connector / Termination |
2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / connectors, M5 / M8 / M12 connectors, GX12 / G16 connector，XH / PH / SM / JST connectors, 5557 (Molex KK) connector |
|
Housing |
Ventilated plastic housing，Gore / PTFE membrane housing，Sintered metal housing，Probe housing |
|
Sensor Elements |
Sensirion SHT20 / SHT30 / SHT31 / SHT35 / SHT40 / SHT41 / SHT43 / SHT45 / SHTC3 Humidity & Temperature Sensor , DHT22 Humidity & Temperature Sensor |
