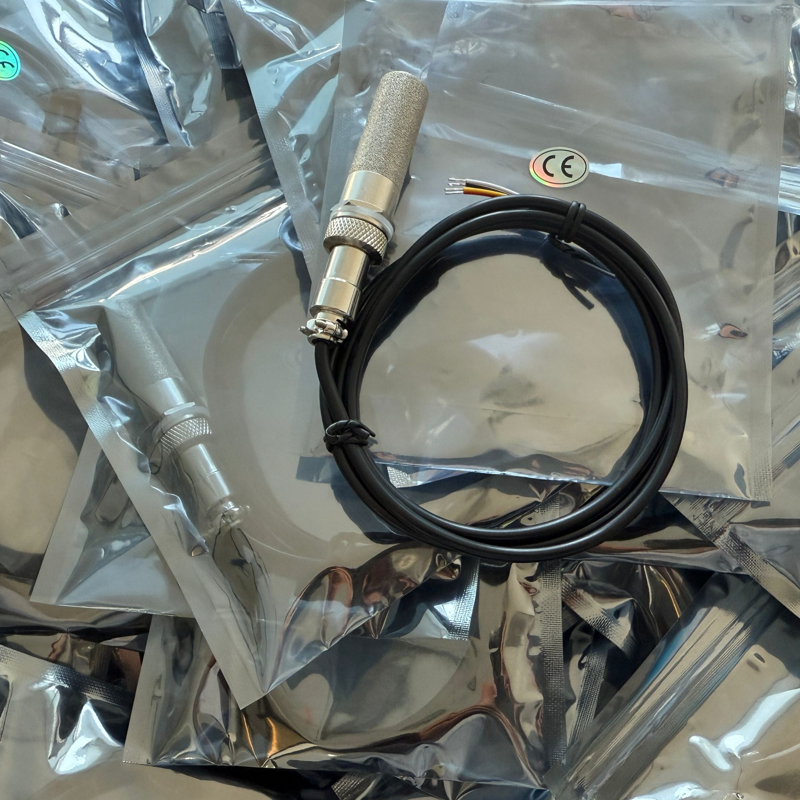

SHT31 Temperature & Humidity Sensor with Sintered Filter & RJ45 Connector
• Sintered Filter for Breathable Sensor Protection
• RJ45 Connector for Convenient System Connection
• SHT31 Sensor for Temperature & Humidity Measurement
• Digital Output for Easy System Integration
• Custom Cable, Housing & Connector Options
• HVAC, IoT & Environmental Monitoring Systems
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →

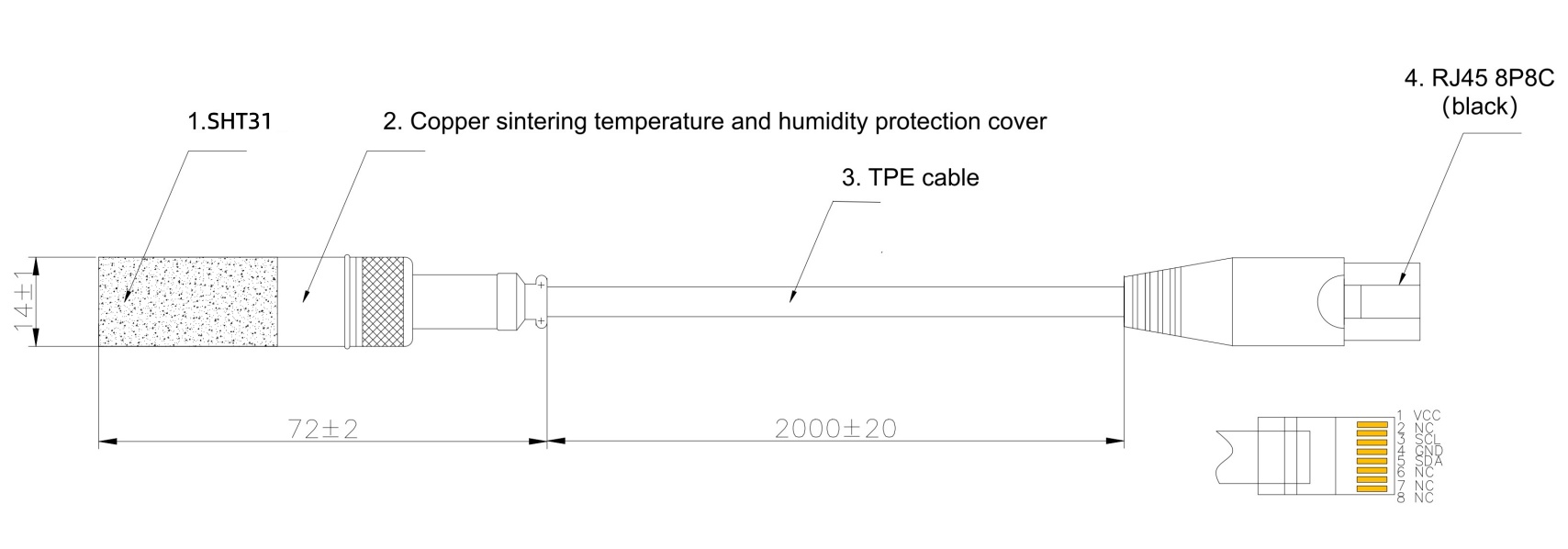

Mechanical Drawing
Technical Data
Sensor Element：Sensirion SHT31 humidity and temperature sensor
Humidity Accuracy: ±2 % RH
Temperature Accuracy: ±0.3°C
Operating Temperature Range: -40°C ~ 125°C
I²C Address: 0x44 / 0x45
Response Time (τ63%): 8 s
Typical Supply Current: 0.2 mA
Sensor housing: Sintered metal housing
Cable: TPE cable
Terminal: RJ45 connector
Available Options
|
Cable |
PVC cable，TPE cable，TPU cable，Silicone cable，FEP cable，PTFE cable，Signal Integrity cable |
|
Cable Length |
1 m (default), customizable 0.1–10 m |
|
Connector / Termination |
2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / connectors, M5 / M8 / M12 connectors, GX12 / G16 connector，XH / PH / SM / JST connectors, 5557 (Molex KK) connector |
|
Housing |
Ventilated plastic housing，Gore / PTFE membrane housing，Sintered metal housing，Probe housing |
|
Sensor Elements |
Sensirion SHT20 / SHT30 / SHT31 / SHT35 / SHT40 / SHT41 / SHT43 / SHT45 / SHTC3 Humidity & Temperature Sensor , DHT22 Humidity & Temperature Sensor |
