MANFRI · SENSOR SOLUTIONS

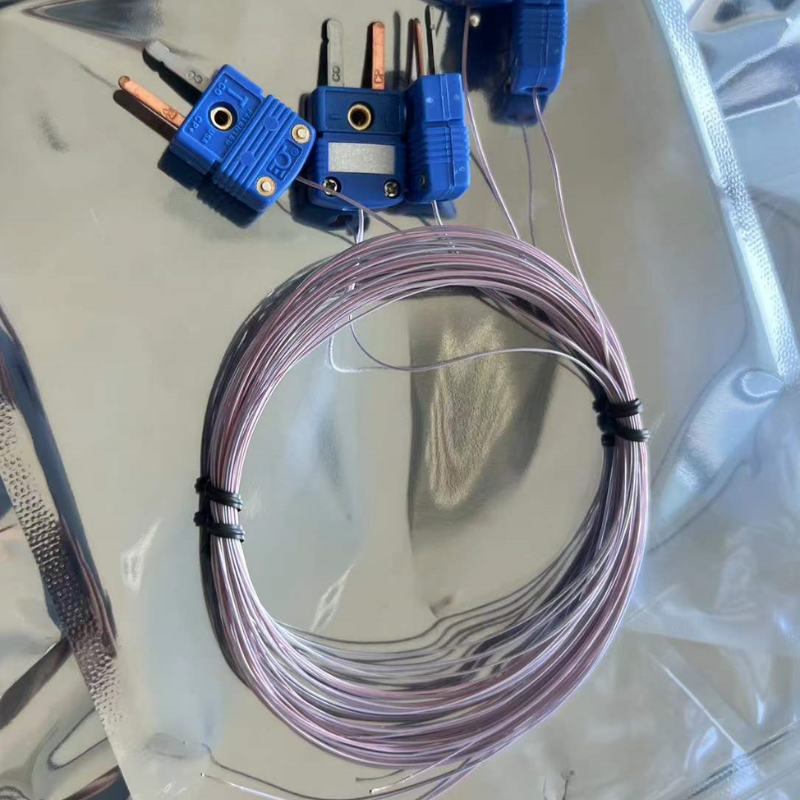

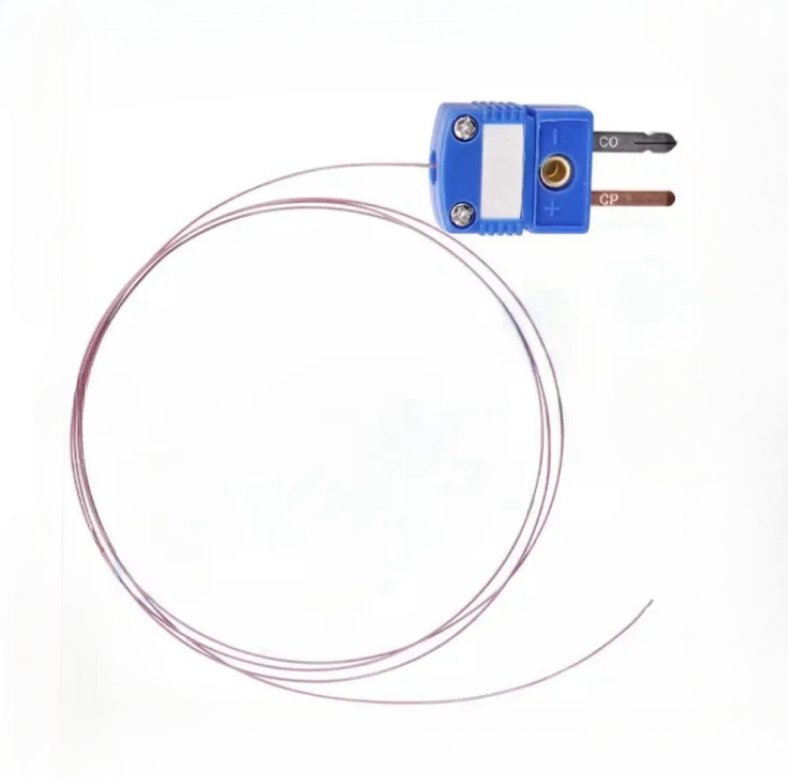

Type T Thermocouple Probe for Laboratory and Analytical Equipment
• Type T Thermocouple for Laboratory Temperature Control
• Designed for Analytical Equipment Monitoring
• Fast Response with Stable Signal Output
• Reliable Detection for Precise Measurements
• Custom Probe & Cable Options Available
• Laboratory & Testing Instrument Applications
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →
Mechanical Drawing
Technical Data
Sensor element : Type T Thermocouple
Sensor accuracy : IEC 60584-1 Class 1 (±0.5°C or ±0.4% of reading
Operating temperature range: -200°C to +350°C (recommended: -200°C to +300°C for long-term stability)
Sensor housing: None ( bare wires only )
Cable: T type thermocouple wire cable
Terminal: Omega mini Plug
Available Options
|
Cable |
Stainless-steel over- braided cable, TPE cable, XLPE cable, PTFE cable, FEP cable, PFA cable，Fiberglass Cable， Mineral Insulated Cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector/ Termination |
M8 / M12 connectors, GX12 connector, 5557 (Molex KK) connector, Fork spade terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Mineral Insulated housing ,Surface Mount housing, Head-mounted housing . Needle housing |
|
Sensor Elements |
Type T thermocouple, Type E thermocouple, Type N thermocouple, Type S Thermocouple Type R Thermocouple Type B Thermocouple |
