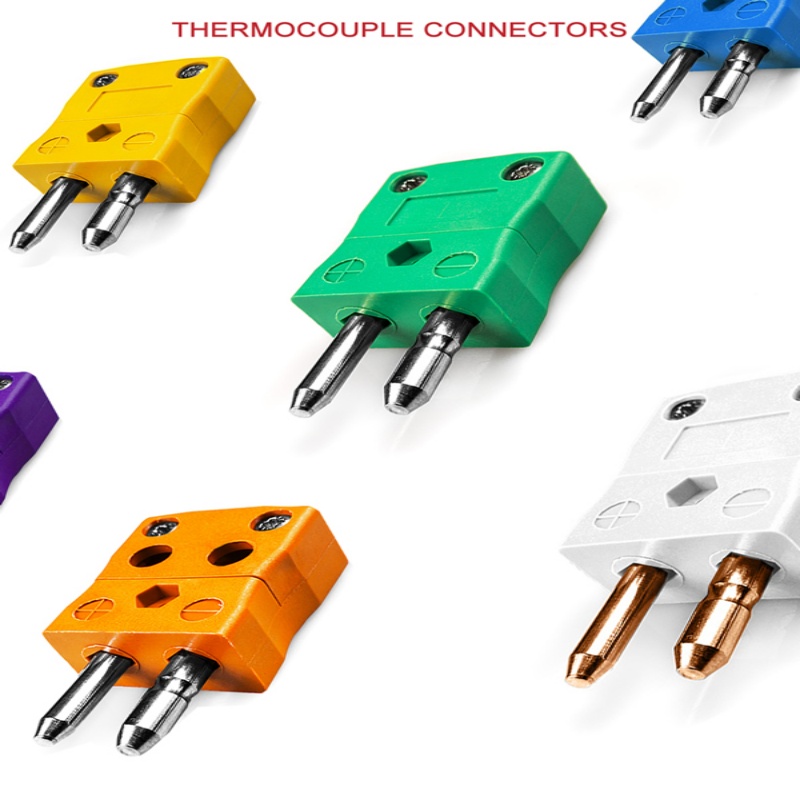

Terminal Options for Flexible Sensor Connections

Essential Termination Types for Industrial Temperature and Humidity Sensors

In the precise world of industrial sensing, a reliable connection is just as critical as an accurate measurement. The choice of termination—the end point of your temperature probe or temperarure  humidity sensor cable—is a vital decision impacting sensor performance, durability, and ease of installation. At Manfri , we engineer our high-precision sensors with a range of professional termination options to ensure seamless integration into any system, from harsh industrial environments to sophisticated laboratory setups.

Here are the most common and reliable wiring terminal types we offer for our temperature sensor along side humidity  & temperature  sensor :

1. Bare Wire / Pigtail Leads

The simplest and most flexible option. These are stripped and tinned wire ends, ready for direct connection.

✅ Ideal For: Custom installations, permanent wiring into screw terminal blocks, control panels, and PLC systems where cost-effectiveness is key.

✅ Key Benefit: Maximum flexibility for OEMs and installers.



2. Pre-Crimped Spade or Ring Terminals

A secure upgrade from bare wires, these feature insulated, crimped metal terminals.

✅ Ideal For: Creating vibration-resistant, reliable connections to power supplies, controllers, and relay modules without the need for soldering.

✅ Key Benefit: Enhanced mechanical stability and faster installation.



3. M8 & M12 Circular Connectors (Industry Standard)

The gold standard for robust industrial sensor connectivity. These threaded, circular connectors provide an exceptional blend of reliability and environmental protection.

✅ Ideal For: Factory automation, process control, and applications requiring IP67 or IP68 ingress protection against moisture, dust, oils, and chemicals. Perfect for food & beverage processing, pharmaceutical manufacturing, and wash-down areas.

✅ Key Benefit: Unmatched durability, high-vibration resistance, and quick-disconnect capability. M12 connectors are renowned for their use in IO-Link communication for smart sensors.



4. JST-Style Connectors

Compact, lightweight, and cost-effective plastic connectors common in electronics.

✅ Ideal For: Internal device wiring, OEM equipment manufacturing, consumer appliances, and space-constrained applications with benign environmental conditions.

✅ Key Benefit: Low-profile design and simple plug-and-play functionality.



5. RJ45, RJ11  Ethernet Connectors

Essential for networked and IIoT-ready sensing solutions. This standard LAN jack enables digital communication and Power-over-Ethernet (PoE).

✅ Ideal For: Industrial Internet of Things (IIoT) applications, smart HVAC systems, and building management where sensors are nodes on a digital network.

✅ Key Benefit: Enables data-rich digital temperature and humidity monitoring and remote configuration over a single cable.



6. Heavy-Duty Aviation Plugs

For the most demanding applications. These large, ultra-robust circular connectors are designed for extreme conditions.

✅ Ideal For: Marine environments, heavy machinery, mining, and energy sectors where extreme shock, vibration, and the highest levels of environmental sealing (IP68/IP69K) are required.

✅ Key Benefit: Supreme mechanical strength and the ability to combine power, signal, and data in a single, ruggedized unit.

7.   2.5mm & 3.5mm DC Jack Plugs
Standard coaxial power connectors providing secure DC power connectivity. These compact plugs feature a center pin for positive voltage and an outer sleeve for ground connection.

✅ Ideal For: Low-power sensor devices, portable measurement equipment, and commercial-grade environmental monitors requiring simple DC power input.

✅ Key Benefit: Compact size, widespread availability, and cost-effective power delivery solution for various AC/DC adapter compatibility.



Choosing the Right Termination for Your Application

Selecting the optimal connector is crucial for system integrity. Consider these factors:

● Environmental Conditions: Does your application require waterproof sensor connectors (IP67/IP68) or explosion-proof ratings?

● Vibration & Stress: In high-vibration environments, threaded M12 sensor connectors or aviation plugs are essential.

● Data Protocol: Are you using analog signals, IO-Link digital sensors, or Ethernet-based systems? The protocol dictates the connector type (e.g., M12 for IO-Link, RJ45 for Ethernet).

● Installation & Maintenance: How often will the sensor be disconnected? Quick-disconnect circular connectors improve maintenance efficiency.
