Ceramic K Type Thermocouple Probe 300–1200°C

• Ceramic Construction for High Temperature Resistance
• Wide Temperature Range for Demanding Applications
• Stable Signal Output with Reliable Performance
• Durable Structure for Long-Term Operation
• Custom Probe Size, Cable & Connector Options
• Furnaces, Kilns, Heating & Industrial Systems

Enquire about this sensor Download PDF ↓

Custom probes, cables, and connectors available.
Explore our customization capabilities →

PRODUCT INFORMATION

In the details.

Ask our engineers

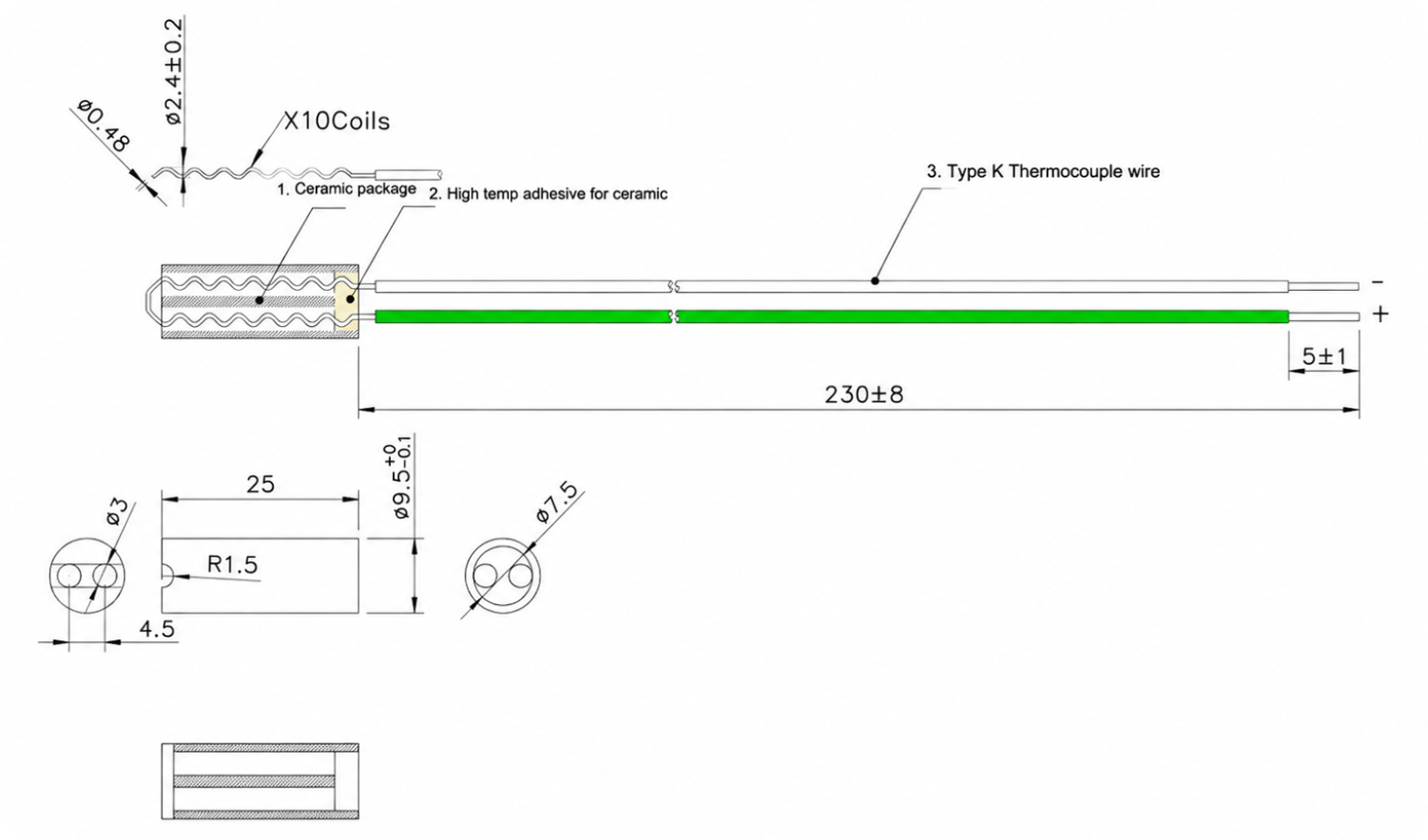

Mechanical Drawing

Ceramic K Type Thermocouple Probe 300–1200°C

Technical Data

Sensor element : Type K Thermocouple

Sensor accuracy : IEC 60584 Class 1 (±1.5°C or ±0.4%)

Operating temperature range: 300°C to 1000°C

Sensor housing: Ceramic housing

Cable: PTFE cable

Terminal: None ( Stripped & Tinned)

Available Options

Cable	Stainless-steel braided cable, TPE cable, XLPE cable, PTFE cable, FEP cable, PFA cable，Fiberglass Cable， Mineral Insulated Cable
Cable Length	100 mm – 1000 mm , Custom lengths available upon request
Connector / Termination	M8 / M12 connectors, GX12 connector, 5557 (Molex KK) connector, Fork spade terminal
Housing	Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Mineral Insulated housing ,Surface Mount housing, Head-mounted housing . Needle housing
Sensor Elements	Type T thermocouple, Type E thermocouple, Type N thermocouple, Type S Thermocouple Type R Thermocouple Type B Thermocouple
