MANFRI · SENSOR SOLUTIONS

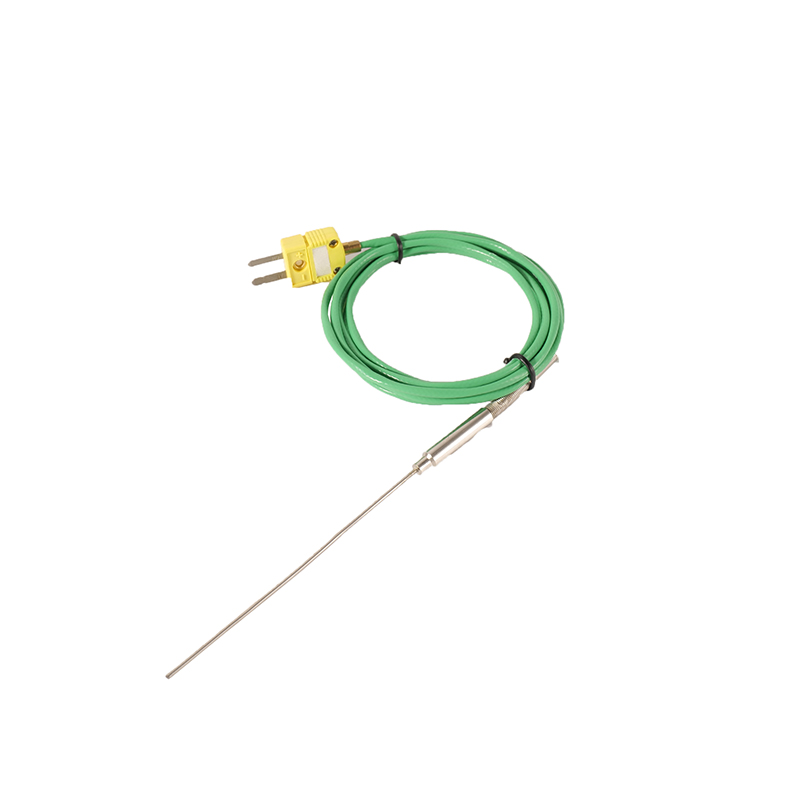

Type K MI Thermocouple probe
• Mineral Insulated Structure for High Durability
• Fast Response for Efficient Temperature Monitoring
• Stable Signal Output with Reliable Performance
• Flexible Installation for Industrial Equipment
• Custom Probe Size, Cable & Connector Options
• Heating, Machinery & Process Control Applications
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →
Mechanical Drawing
Technical Data
Sensor element : Type K Thermocouple
Sensor accuracy : IEC 60584 Class 1 (±1.5°C or ±0.4%)
Operating temperature range: -–200°C to 1200°C
Sensor housing: Mineral Insulated housing
Cable: PTFE cable
Terminal: Mini omega plug
Available Options
|
Cable |
Stainless-steel braided cable, TPE cable, XLPE cable, PTFE cable, FEP cable, PFA cable，Fiberglass Cable， Mineral Insulated Cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector / Termination |
M8 / M12 connectors, GX12 connector, 5557 (Molex KK) connector, Fork spade terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Mineral Insulated housing ,Surface Mount housing, Head-mounted housing . Needle housing |
|
Sensor Elements |
Type T thermocouple, Type E thermocouple, Type N thermocouple, Type S Thermocouple Type R Thermocouple Type B Thermocouple |
