MANFRI · SENSOR SOLUTIONS

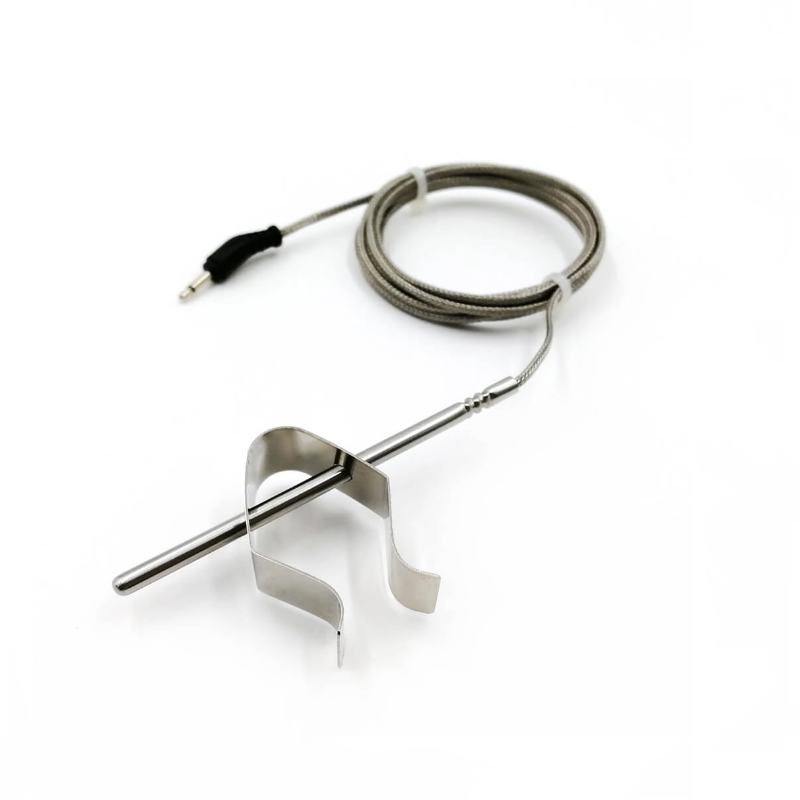

Dual Sensor Meat Food Temperature Sensor Probe with 2.5mm Plug
• Dual Sensor Design for Multi-Point Temperature Detection
• 2.5mm Plug for Convenient Device Connection
• Food-Grade Probe for Safe Cooking Applications
• Fast Response with Stable Temperature Reading
• Custom Cable, Probe & Connector Options
• BBQ, Kitchen & Food Processing Monitoring
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →
The dual sensor meat food temperature sensor probe with 2.5mm plug is a reliable temperature measurement solution designed for BBQ, cooking and food processing applications. It enables dual-point temperature detection for improved monitoring performance and provides fast response with stable readings during food preparation. Featuring food-grade stainless steel probes, durable cable assembly and a convenient 2.5mm plug connection, it offers excellent reliability and easy integration with digital thermometers and cooking devices. It supports customized probe dimensions, cable lengths and connector options to meet different application requirements. It is widely used in BBQ grills, ovens, kitchen appliances and food temperature monitoring systems. OEM/ODM solutions and RoHS/REACH documents are available upon request.
Mechanical Drawing
Technical Data
Sensor element : NTC 10K Thermistor
Sensor tolerance: ±1%, ±2.5%, ±5% (at 25°C)
Operating temperature range: -40°C to 125°C，
Sensor housing: SS316 Pointed Tip housing
Cable: Teflon with stainless steel braided cable
Termination: 2.5mm audio jack
Available Options
|
Cable |
TPE cable， Silicone cable ，Stainless-steel braided cable , PTFE cable, FEP cable, PFA cable，Shielded cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector / Termination |
2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / RJ50 connectors, M5 / M8 / M12 connectors, GX12 connector, XH / PH / SM / JST connectors, 5557 (Molex KK) connector, Fork spade terminal，Ring terminal，Pin terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Surface Mount housing, Needle housing |
|
Sensor Elements |
NTC 1KΩ, NTC 2KΩ、NTC 3.3KΩ、NTC 5KΩ，NTC 10kΩ，NTC 20KΩ、NTC 50KΩ，NTC 100KΩ |
