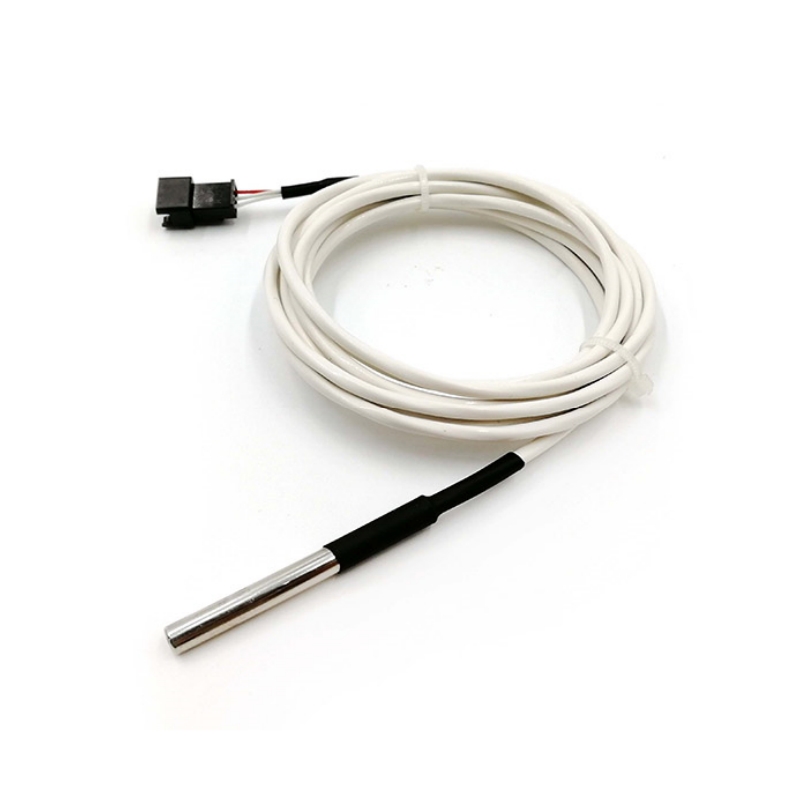

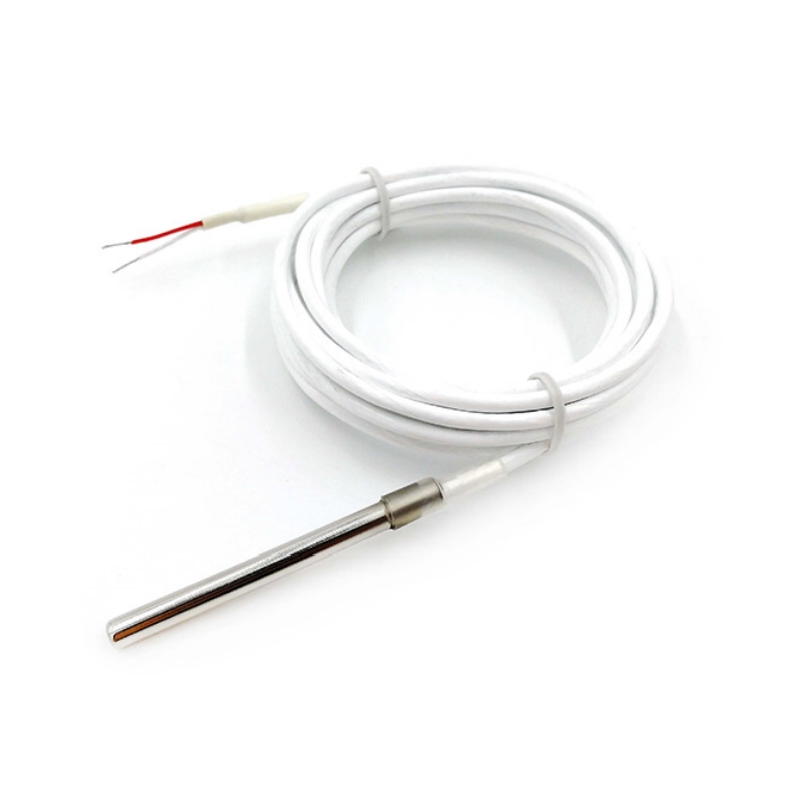

NTC 10kΩ Temperature Probe SS304 Housing with 3.5mm Jack
• SS304 Housing for Corrosion Resistance & Durability
• Stable Sensing Performance for Reliable Monitoring
• Fast Response with Consistent Temperature Detection
• 3.5mm Jack Connection for Easy Integration
• Custom Resistance, Cable & Connector Options
• HVAC, Appliances & Industrial Temperature Control
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →

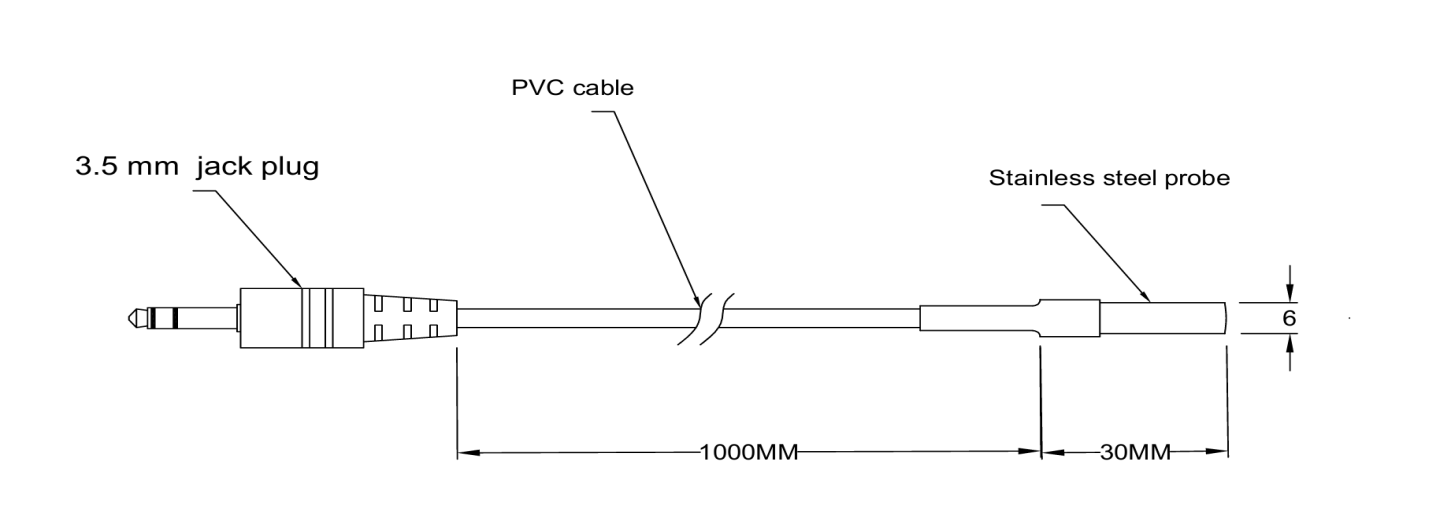

Mechanical Drawing
Technical Data
Sensor element : NTC 10kΩ@25°C B25/50 ≈ 3950K
Sensor tolerance: ±1%, ±2.5%, ±5% (at 25°C)
Operating temperature range: –40～125 Deg C
Sensor housing: Close end tube , 304 Stainless Steel
Cable: 2 conductor, PVC insulation
Termination/ Connector : 3.5mm Audio jack plug
Available Options
|
Cable |
PVC cable， TPE cable， Silicone cable ，Stainless-steel braided cable , PTFE cable, FEP cable, PFA cable，Shielded cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector / Termination |
2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / RJ50 connectors, M5 / M8 / M12 connectors, GX12 connector, XH / PH / SM / JST connectors, 5557 (Molex KK) connector, Fork spade terminal，Ring terminal，Pin terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Surface Mount housing, Needle housing |
|
Sensor Elements |
NTC 1KΩ, NTC 2KΩ、NTC 3.3KΩ、NTC 5KΩ，NTC 10kΩ，NTC 20KΩ、NTC 50KΩ，NTC 100KΩ |
