NTC 5kΩ Ring Lug Temperature Sensor with 2.5mm Jack Plug
• Ring Lug Design for Easy Surface Installation
• Stable Resistance Output for Reliable Monitoring
• Durable Construction for Long-Term Operation
• Flexible Cable & Connector Configurations Available
• Custom Resistance Values & Designs Supported
• HVAC, Appliances & Industrial Temperature Control
Custom probes, cables, and connectors available.
Explore our customization capabilities →
Explore our customization capabilities →

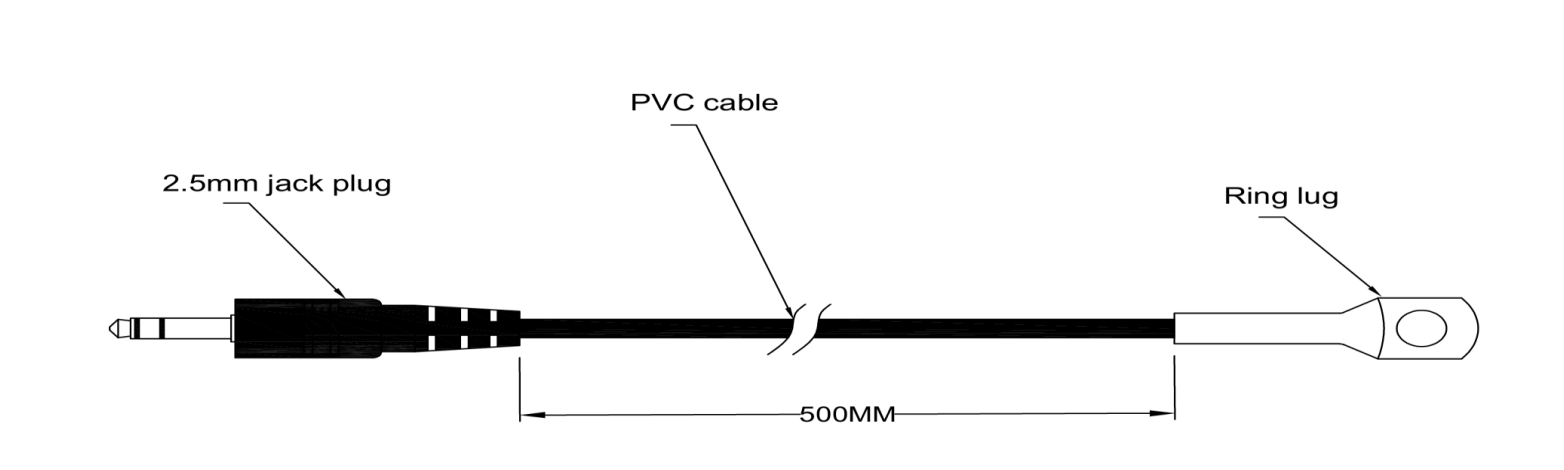

Mechanical Drawing
Technical Data
Sensor element : NTC 5KΩ@25°C B25/50 ≈ 3950K
Sensor tolerance: ±1%, ±2.5%, ±5% (at 25°C)
Operating temperature range: –40～125 °C
Sensor housing: Stainless steel Lug type
Cable： PVC cable
Termination: 2.5mm DC jack
Available Options
|
Cable |

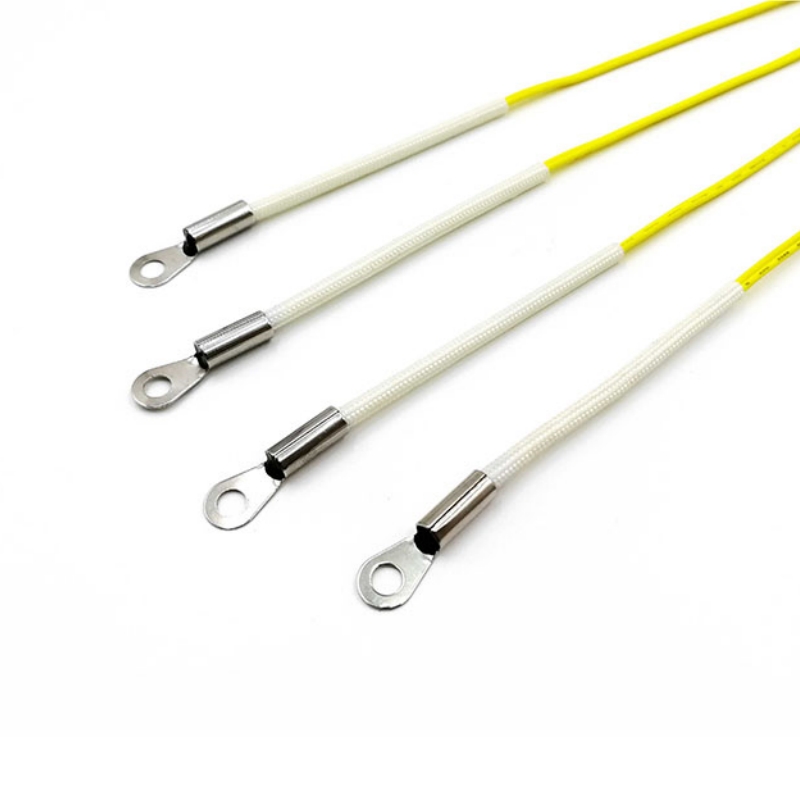

PVC cable， TPE cable， Silicone cable ，Stainless-steel braided cable , PTFE cable, FEP cable, PFA cable，Shielded cable |
|
Cable Length |
100 mm – 1000 mm , Custom lengths available upon request |
|
Connector / Termination |

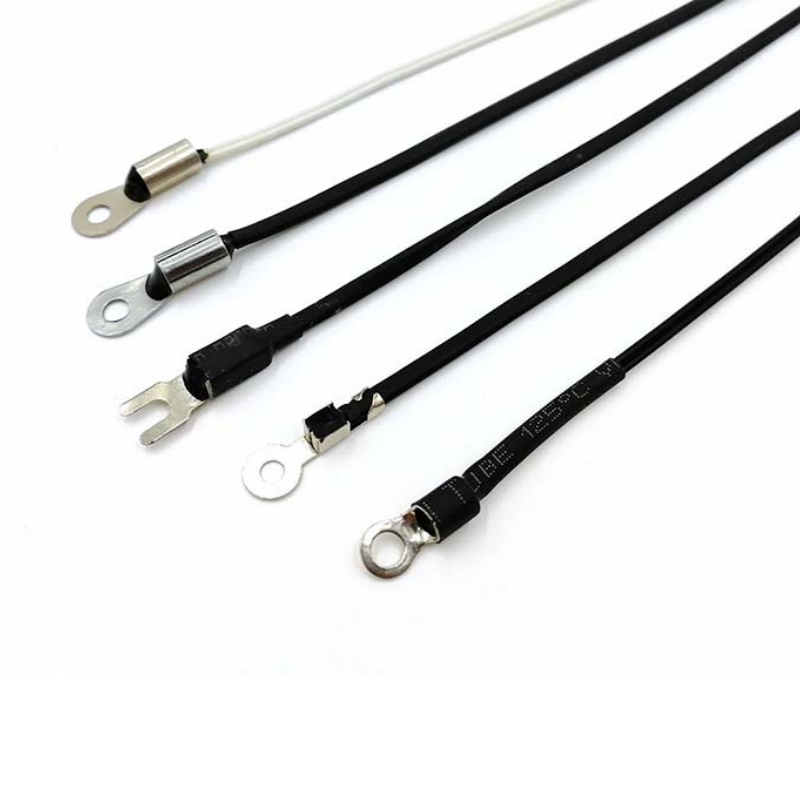

2.5 mm / 3.5 mm audio jack, RJ11 / RJ12 / RJ45 / RJ50 connectors, M5 / M8 / M12 connectors, GX12 connector, XH / PH / SM / JST connectors, 5557 (Molex KK) connector, Fork spade terminal，Ring terminal，Pin terminal |
|
Housing |
Over-molded housing, Closed-end stainless-steel tube housing (SS304 / SS316) , Threaded screw-in housing, Spring Loaded housing. Ring lug housing, Surface Mount housing, Needle housing |
|
Sensor Elements |
NTC 1KΩ, NTC 2KΩ、NTC 3.3KΩ、NTC 5KΩ，NTC 10kΩ，NTC 20KΩ、NTC 50KΩ，NTC 100KΩ |
